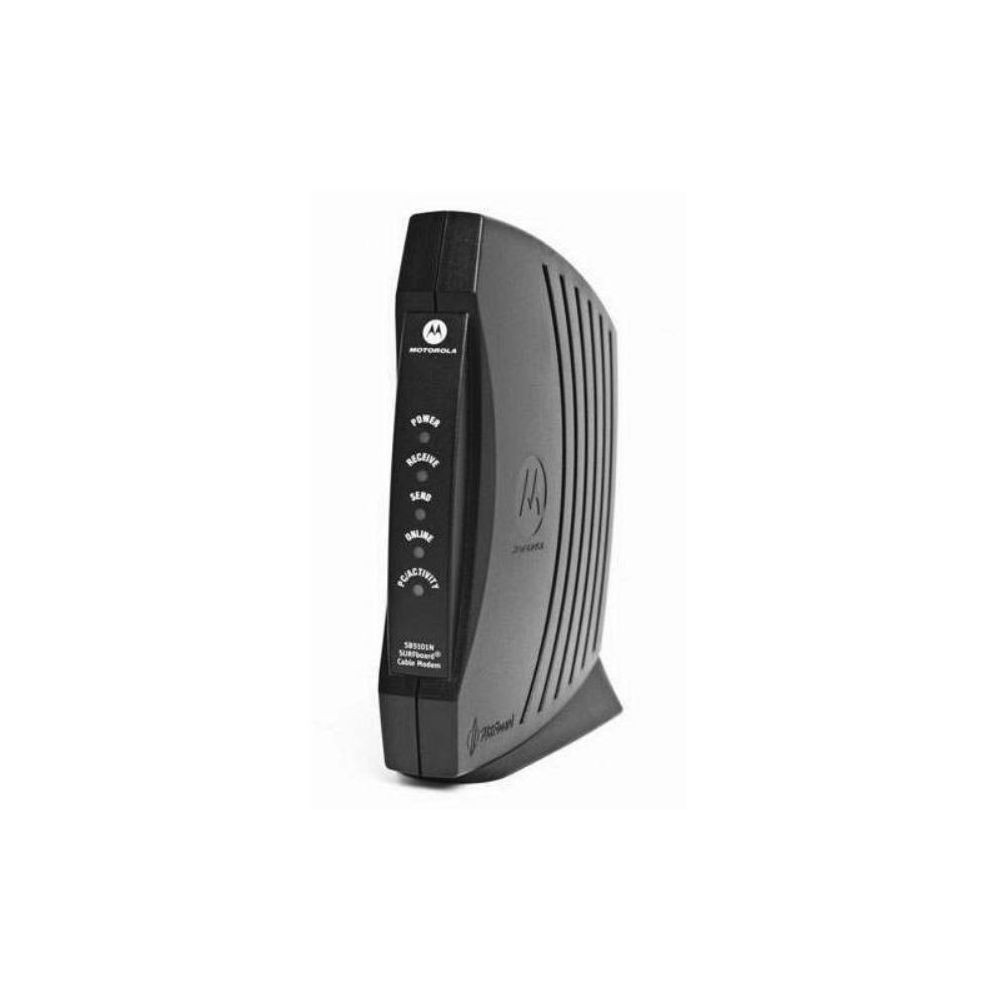

Motorola SB5101U 38Mbps DOCSIS2.0 Modem

More Views

Motorola SB5101U 38Mbps DOCSIS2.0 Modem

Availability: In stock

Motorola SB1501U 38Mbps DOCSIS2.0 Modem
  • Item Part#: 567005-0050-0-O
  • Mfg Part#: 567005-0050-00
  • Manufacturer: MOTOROLA
  • Warranty: 90 Days
  • Condition: New Open Box
  • Free Shipping: Yes
$59.99
Description

Details

Motorola 567005-0050 SB5101U 38 Mbps Modem General Description:

Cable modem offers the capability of high-speed Internet access. Lets you access Web sites quickly, download graphics and large files with ease, and enjoy real-time interactive PC gaming. Enjoy Internet access that is always on and always connected.


Motorola 567005-0050 SB5101U  38 Mbps Modem Features:

  • Allows you to share Internet access with the computers on your existing network. For use with cable broadband networks (service required).
  • High-speed Internet access via cable Surf the Internet at speeds of up to 30 Mbps. DOCSIS 2.0 certified; backward compatible with DOCSIS 1.1/1.0 systems.
  • Connects to your network via 10/100Base-T Ethernet port. USB port allows connection to a single non-networked computer. Cable interface is via standard 75-ohm female F-connector.
  • 6 LEDs indicate system status and help diagnose problems. Standby switch permits increased security when not in use.
  • Space-saving vertical design to fit on your desk. Overall dimensions are 6.2"H x 2.3"W x 6"D.
  • Easy software installation. Ethernet and USB cables included.
  • Compatible with Windows, Mac OS and Unix systems.
  • Complies with environmental and energy-efficiency regulations.


Motorola 567005-0050 SB5101U  38 Mbps Modem Specifications:

Interface

1x USB port
Cable: F-Connector, female  1

Please Note:

Optional 1.1 USB data port available (not included) - comes with CD-ROM

close

Ethernet

1x 10 / 100 Base-T Ethernet port (LAN RJ-45)

Networking

L2VPN (Layer 2 Virtual Private Networks): DUT filtering

Protocols

TCP / IP

Data Rate

Downstream:

DOCSIS: 38 Mbps or less (max.)
Euro-DOCSIS: 51 Mbps or less (max.)

Upstream:

30 Mbps (max.)

Symbol Rate

Downstream:

DOCSIS: 64 QAM 5.057 Msym/s, 256 QAM 5.361 Msym/s
Euro-DOCSIS: 64 QAM 6.952 Msym/s, 256 QAM 6.952 Msym/s

Upstream: 160, 320, 640, 1280, 2560, 5120 ksym/s  2

Please Note:

5120 with A-TDMA or S-CDMA-enabled CMTS

close

Bandwidth

Downstream:

DOCSIS: 6.0 MHz
Euro-DOCSIS: 8.0 MHz

Upstream: 200, 400, 800 kHz; 1.6, 3.2, 6.4 MHz  3

Please Note:

6.4 MHz with A-TDMA or S-CDMA-enabled CMTS

close

Modulation

Downstream: 64 - 256 QAM
Upstream: 8, 16, 32, 64, 128 QAM or QPSK

LED Indicators

Power, Receive, Send, Online and PC Activity

Signal Level

Downstream: -15 - 15 dBmV
Upstream:

A-TDMA: +8 - +54 dBmV (32 QAM, 64 QAM), +8 - 55 dBmV (8 QAM, 16 QAM), +8 - +58 dBmV (QPSK)
S-CDMA: +8 - +53 dBmV (all modulations)

Input Impedance

75 ohms (nominal)

Output Impedance

75 ohms (nominal)

Frequency Range

DOCSIS: 5 - 42 MHz edge to edge
Euro-DOCSIS: 5 - 65 MHz edge to edge

Power

Input: N.A.: 105 - 125 VAC, 60 Hz; outside N.A.: 100 - 240 VAC, 50 - 60 Hz
Output: 12 VDC, 9.0 W (nominal)

Certifications

MEF 9: Metro Ethernet Forum certification 9 for Enterprise reliability per CableLabs testing
CW66 - DOCSIS 2.0 (interoperable with DOCSIS 1.0 and 1.1 standards)
ECW34 - EuroDOCSiS 2.0

System Requirements

PC: 90496, Pentium or later; Windows Vista, 2000, or XP; Linux with Ethernet connection
Older versions of Windows will work

Mac: Power PC or later; Mac OS 9 or higher; Ethernet connection

Unix: Ethernet connection

Environmental

RoHS, CeC, CMM, Energy Star, European CoC, H.R. 6 compliant
specifications
Operating temperature: 32 - 104° F (0 - 40° C)
Storage temperature: -22 - 158° F (-30 - 70° C)
Operating humidity: 5.0 - 95% R.H. (non-condensing)
Operating altitude: -200 - 10,000' (61 - 3048 m) AMSL

Dimensions (HxWxL)

6.2 x 2.3 x 6.0" (15.7 x 5.8 x 15.24 cm)



What's in the box: Motorola SB1501U Modem, Ethernet cable, AC Adapter.
