Additional Information:
This Elo Monitor is in great working condition.
The unit has been fully tested and is completely functional.
Included in the Box:
Main unit, Documentation, Hardware Accessories Kit
Packaging:
The item may be packaged in an Original or Brown box.
MANUFACTURER: Elo
PART NUMBER: E107766

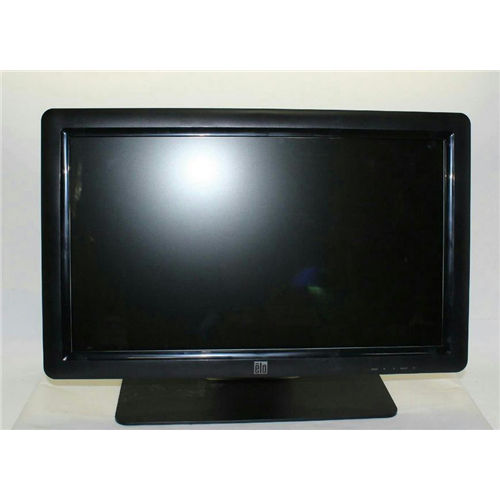

The 2201L offers a flexible, space-saving design, HD wide-aspect ratio 22-inch LCD touch monitor. Well-suited to meet durability as well as aesthetic requirements for front-of-store, back office, kiosk and even out-of-store applications, the Elo TouchSystems 2201L offers real versatility for a variety of retail and hospitality interactive solutions.
Available with Intellitouch plus multi-touch surface acoustic wave touchscreen technology, the 2201L provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission - for an accurate touch response and vivid images! And, instead of the high energy use CCFL backlights of other touch monitors, the 2201L is set apart by using state-of-the-art LED technology to reduce energy usage.
Wide-aspect displays like the Elo TouchSystems 2201L are easier to use and incorporate into the workplace than traditional desktop touch monitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred in corporate environments for publishing and dual window applications, and are popular in public venue environments due to a high-definition cinematic-like experience.
TECHNICAL SPECIFICATIONSAudio Output
Form Factor:
Internal
Output Power Channel:
2 Watt
Speakers Configuration:
Stereo
Type:
Speaker(s)
Cabinet
Chassis Built-in Devices:
Stereo speakers
Dimensions & Weight
Comments:
With stand
Depth:
7.6 in
Height:
15.4 in
Weight:
16.53 lbs
Width:
21.7 in
Display
Backlight Life:
30,000 hours
Color Support:
16.7 million colors
Controls & Adjustments:
Aspect control , Brightness , Clock , Color temperature , Contrast , H/V position , Mute , Phase , Sharpness , Volume
Diagonal Size (metric):
55.9 cm
Form Factor:
Desktop
Horizontal Refresh Rate:
80 kHz
Horizontal Viewing Angle:
170
Image Aspect Ratio:
16:9 , 16:9
Input Signal:
DVI-D, VGA
LCD Backlight Technology:
LED backlight
OSD Languages:
Chinese (simplified) , Chinese (traditional) , English , French , German , Italian , Japanese , Spanish
Projector Image Brightness:
225 cd/m²
Projector Monitor Features:
IntelliTouch Plus Surface Acoustic Wave
Response Time:
5 ms
Technology:
TFT active matrix
Touchscreen:
Yes
Type:
LCD display , LED-backlit LCD monitor
Typical Response Time:
5 ms
V-Sync Rate at Max Res.:
60 Hz
Vertical Refresh Rate:
75 Hz
Vertical Viewing Angle:
160
Widescreen:
Widescreen
Display (Projector)
Diagonal Size:
22 in
Image Contrast Ratio:
1000:1
Interface:
DVI , VGA (HD-15)
Max Resolution:
1920 x 1080
Environmental Parameters
Humidity Range Operating:
20 - 80% (non-condensing)
Max Operating Temperature:
104 °F
Min Operating Temperature:
32 °F
Header
Brand:
Elo
Compatibility:
PC
Country Kits:
Worldwide
Manufacturer:
Elo TouchSystems
Model:
2201L IntelliTouch Plus
Packaged Quantity:
1
Product Line:
Elo Desktop Touchmonitors
Input Device
Movement Detection Technology:
Intellitouch SAW
Type:
Touch-screen
Interfaces
Type:
DVI-D
Type:
VGA
Type:
Audio line-in
Type:
USB
Type:
Headphones
Miscellaneous
Color:
Black
Color Category:
Black
Compliant Standards:
BSMI , C-Tick , CB , CCC , cUL , FCC , GOST , IC , KCC , NOM , RoHS , UL , VCCI , WEEE
Features:
Security lock slot (cable lock sold separately)
Flat Panel Mount Interface:
100 x 100 mm
MTBF:
50,000 hour(s)
Power Device
Form Factor:
External
Frequency Required:
50/60 Hz
Nominal Voltage:
AC 120/230 V
Power Consumption Operational:
29 Watt
Projector
Max H-Sync Rate:
80 kHz
Max V-Sync Rate:
75 Hz
TV Tuner
TV Tuner Presence:
No
Video Input
Digital Video Standard:
Digital Visual Interface (DVI)
TV Tuner Presence:
No
