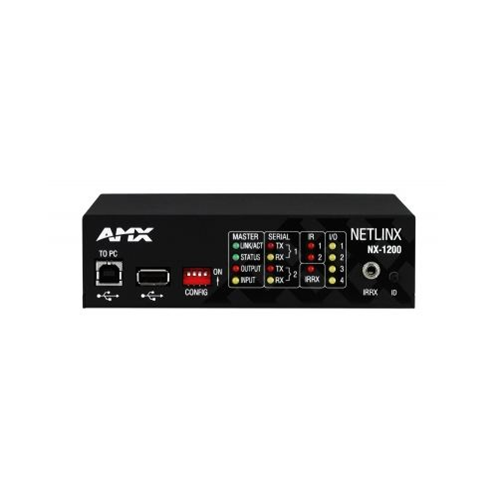

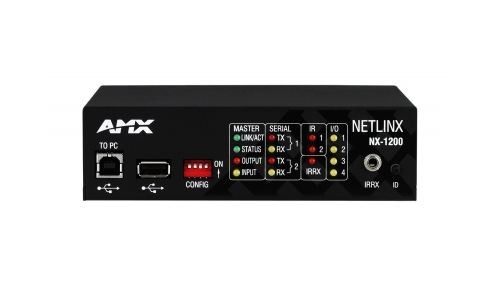

AMX NetLinx NX Integrated Controller

Additional Information:

This AMX NX-1200 NetLinx NX Integrated Controller is in great working condition.

The unit has been fully tested and is completely functional.

Included in the Box:

Main Unit. Power Adapter. Accessories.

Packaging:

The item may be packaged in an Original or Brown box.

Brand: AMX

Model: FG2106-01

Features:

• Ultra-Fast 1600 MIPS processor
• 512 MB Onboard RAM
• 1 M Non-Volatile Memory
• 4 GB SDHC FLASH Memory
• 1 RU x 1/3 Rack Space
• 1 AXLink Interface
• 1 10/100 LAN Interface
• 4 Digital I/O Ports
• 1 RS232/422/485 Port
• 1 RS232-Only Port
• 2 IR/Serial Output Ports
• 1 IR Receive Port

Specifications:

Active Power Requirements

• Voltage, DC (Typical): 12 VDC
• DC Current Draw: 200 mA @ 12 VDC
• Voltage DC Range: 9 - 18 VDC
• Power Connector: 3.5mm Phoenix with retaining screws

Power Consumption

• Active Power Consumption: 3 W

Environmental

• Temperature (Operating): 32° F to 122° F (0° C to 50° C)
• Temperature (Storage): 14° F to 140° F (-10° C to 60°C)
• Humidity (Operating): 5% to 85% RH
• Heat Dissipation (Typical): 10.2 BTU/hr

Onboard Master

• Processor: 1600 MIPSM
• Program Port: (1) USB Standard B
• Configuration Dip Switch: 4-position
• Status Indicator:  Status LED (green) blinks to indicate that the system is programmed and communicating properly
• Input Indicator: Input LED (yellow) blinks to indicate that the Controller is receiving data
• Output Indicator: Output LED (red) blinks to indicate that the Controller is transmitting data
• ID Pushbutton: Black ID pushbutton for setting IP mode and reverting to default configuration and firmware
• USB Host Port:(1) USB Standard A, USB Host port supports Solid State drive for upgrading firmware, loading code files, copying configuration data and remote storage

Memory

• NVRAM: 1 MB
• Memory Card: 4 GB SD
• DDRAM: 512 MB
• Note: Supports external USB Solid State Drives

Ethernet

• Connection: (1) RJ-45
• Description: 10/100 Port RJ-45 connector provides TCP/IP communication. Auto MDI/MDI-X enabled. Supports IPv4 and IPv6 networks. Supports HTTP, HTTPS, Telnet, FTP
• Link/Act Indicator:  Link/Activity LED (green) blinks when receiving Ethernet data packets, one on Ethernet RJ-45 connector and one on the front panel
• Speed Indicator: Speed LED (yellow) lights On when the connection speed is 100 Mbps Ethernet connection and turns OFF when the speed is 10 Mbps

Control Ports & Indicators

• AxLink Port:  (1) 4-position 3.5mm Screw Terminal, provides data and power to external AxLink control devices
• AxLink Indicator: (1) AxLink LED (green) indicates the state of the AxLink port
• RS-232/422/485 Port:
  • (1) 10-position 3.5mm Screw Terminal
  • NetLinx Port 1
  • XON/XOFF (transmit on / transmit off)
  • CTS/RTS (clear to send/ready to send)
  • 300 - 115,200 baud
• RS-232 Port:Serial Indicator: (2) sets of LEDs (red/yellow) indicate when serial Ports 1 and 2 are transmitting and receiving data
  • (1) 5-position 3.5mm Screw Terminal
  • NetLinx Port 2
  • XON/XOFF (transmit on / transmit off)
  • CTS/RTS (clear to send/ready to send)
  • 300 - 115,200 baud
• IR/Serial:IR/Serial Indicators: (2) LEDs (red) indicate when each of the IR/Serial ports (11-12) are transmitting control data
  • (2) 2-position 3.5mm Screw Terminal
  • 2 IR Transmit / 1-way Serial ports
  • NetLinx Ports 11-12
  • Support high-frequency carriers up to 1.142 MHz
  • 2 IR/Serial data signals can be generated simultaneously
• I/O Channels:I/O Indicator: (4) LEDs (yellow) indicate each of the I/O channels (1-4) are active
  • (4) One 6-position 3.5mm Screw Terminal
  • 4-channel binary I/O port for contact closure with each input being capable of voltage sensing
  • NetLinx Port 22
  • Channels 1-4
• IR/RX Ports: (1) 1/8" mini-jack
• IR/RX Indicator: (1) IR RX LED (red) LED lights when IR data is being received via the IR/RX port

General

• Enclosure: Metal with black matte finish
• Regulatory Compliance:
• FCC CFR Title 47 Part 15
• CE EN 55022
• CE EN 55024
• CE EN 60950-1
• IEC 60950-1
• UL 60950-1
• C-Tick CISPR 22
• IC CISPR 22
• VCCI CISPR 22
• RoHS
• WEEE
